Product Details

TACO

Taco is a well known street meal, it's a portion of delicious, convenient and diverse food that people enjoy for decades.

No matter what your life circumstances are, a yummy taco always can bring you back to the day one moment.

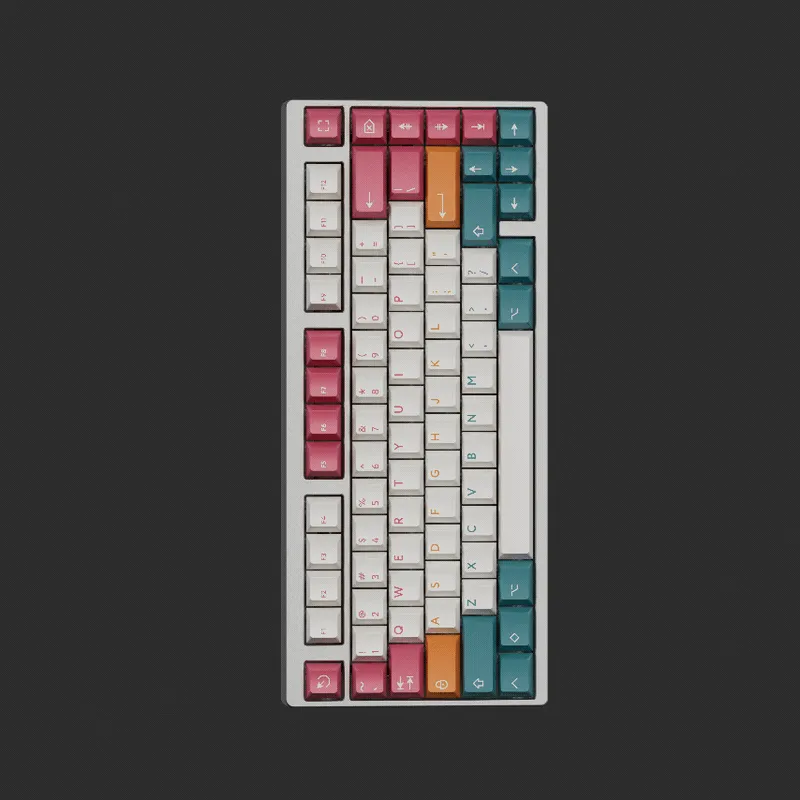

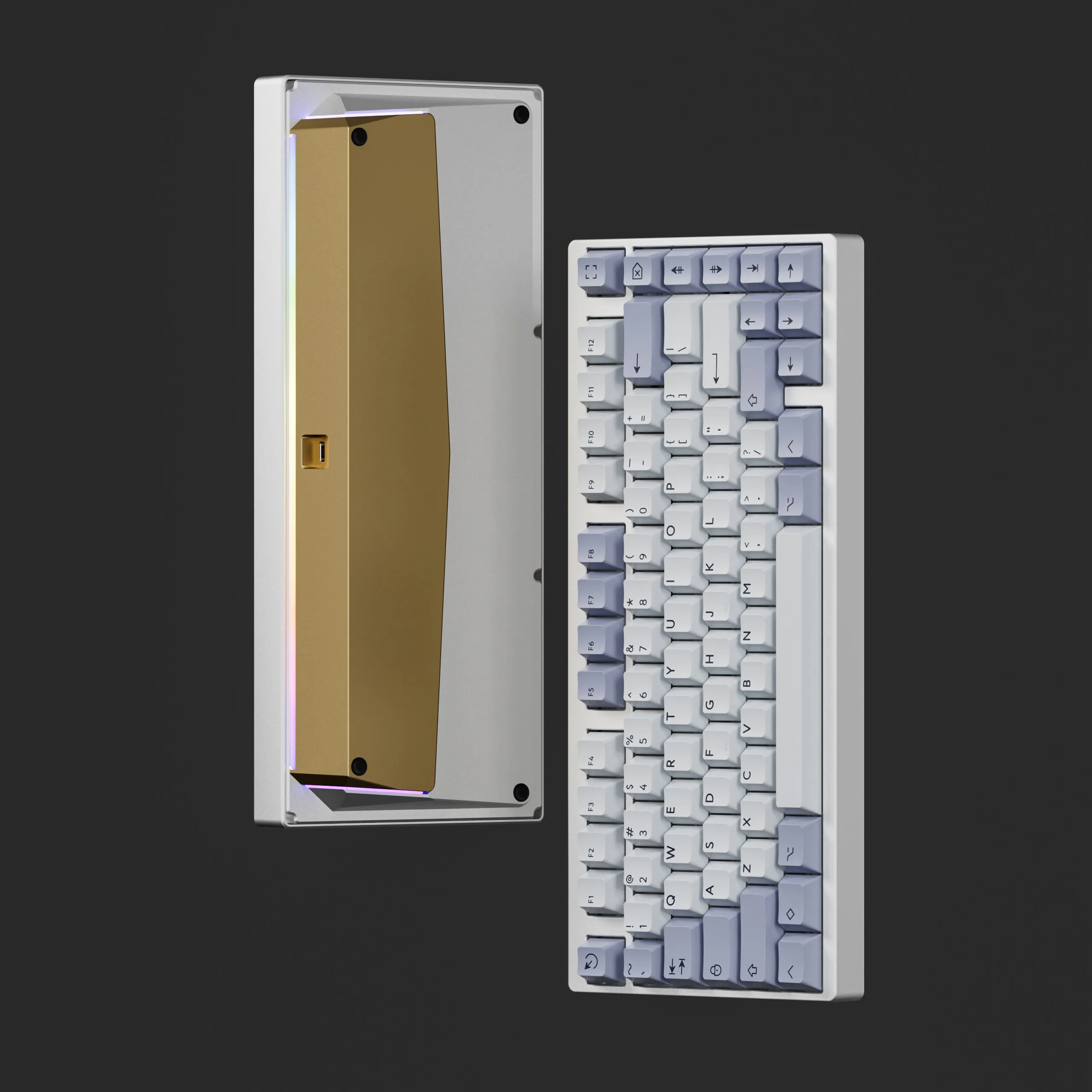

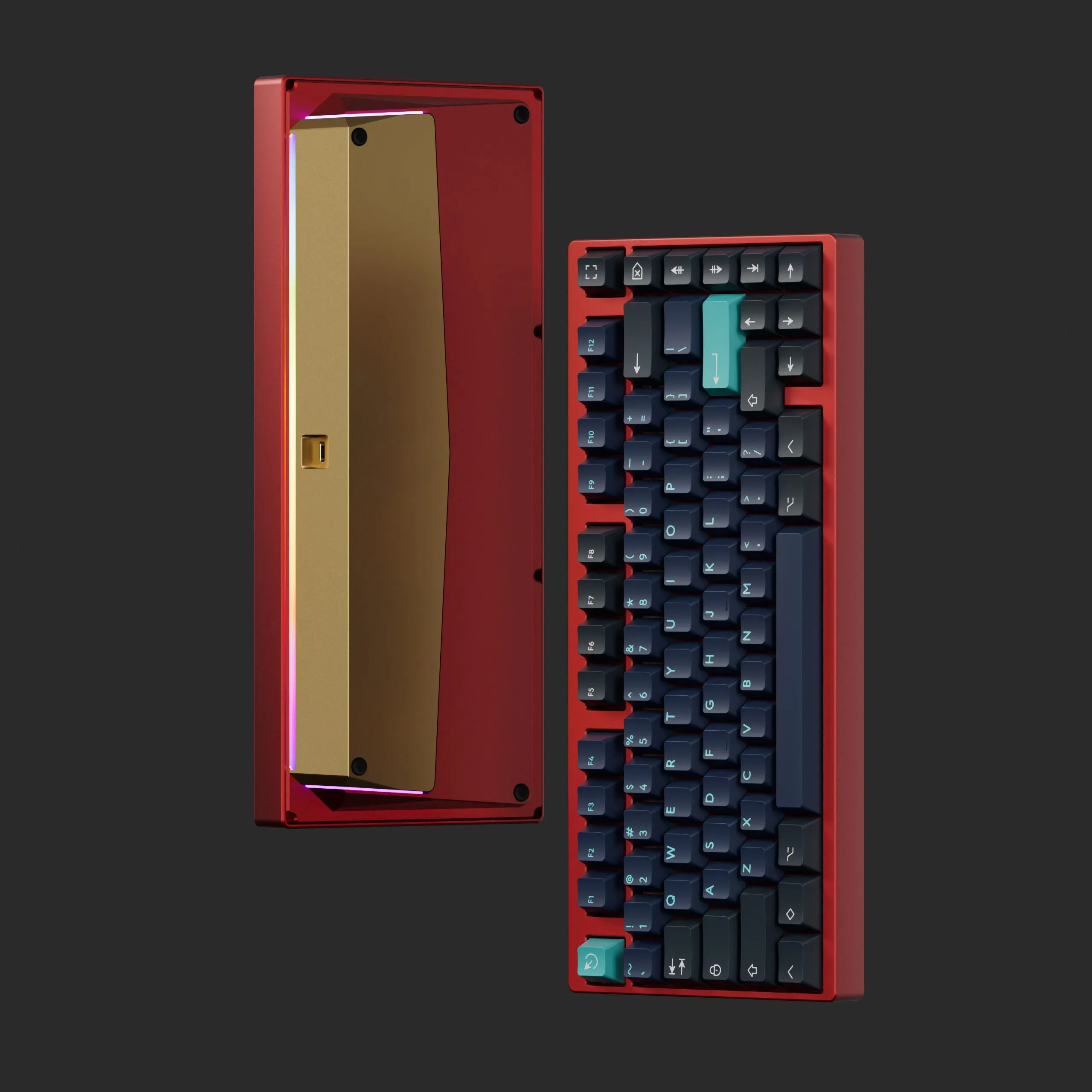

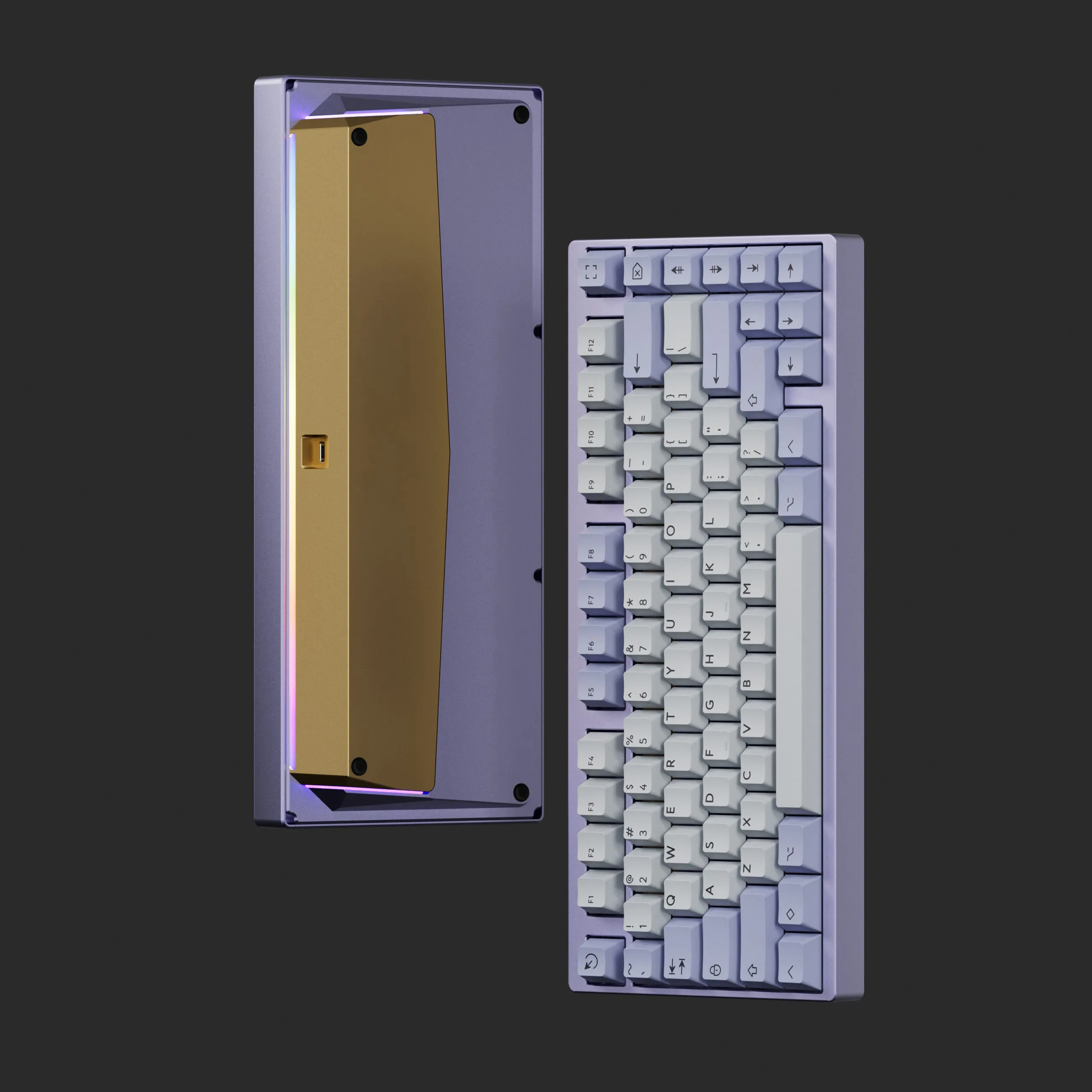

That is also the feature we want to bring with the Taco 75% design this time. A minimalist keyboard that throws you back to the day when you first ever fall into the mechanical keyboard world.

SPECS

  • Typing angle: 8°

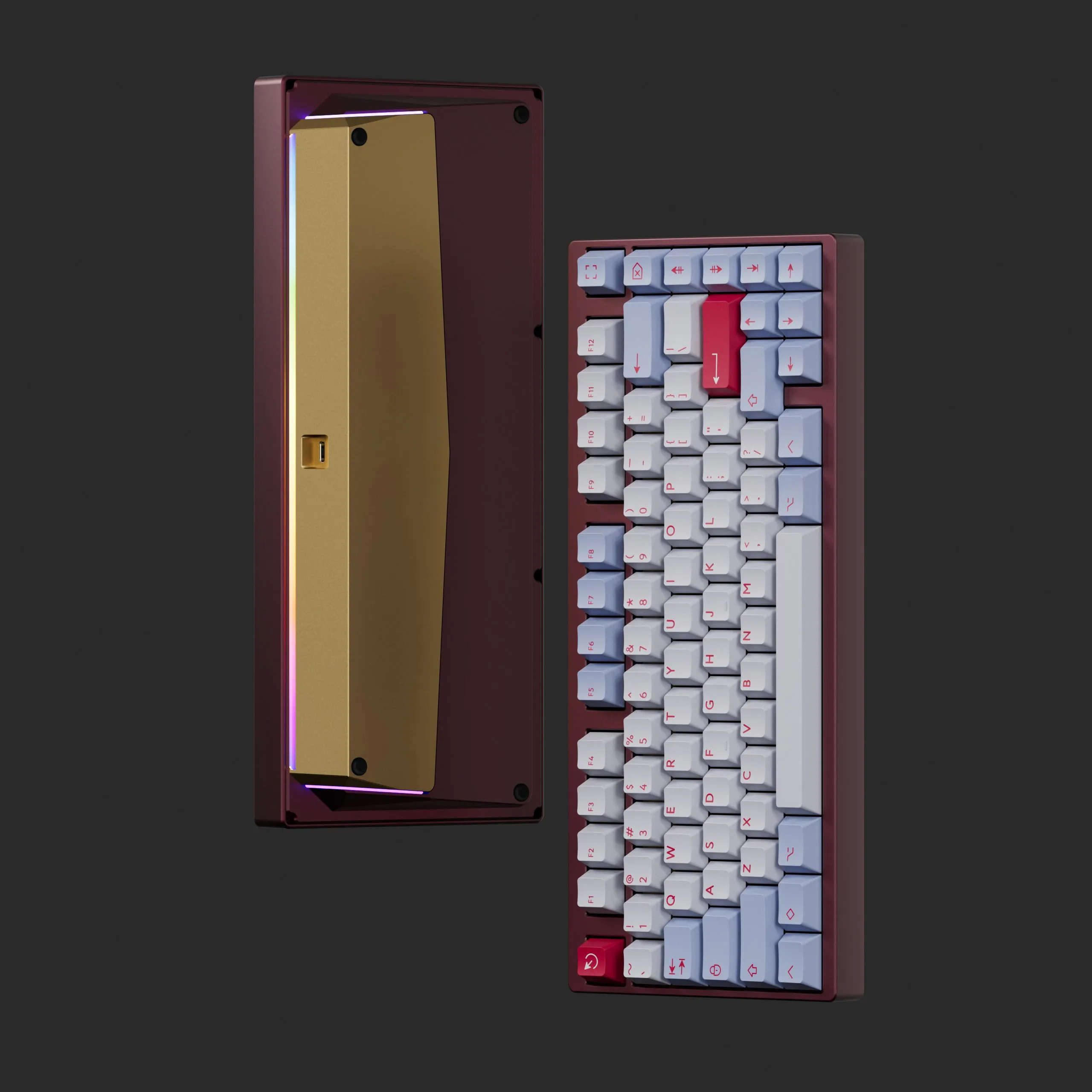

  • Structure: Top mount/Silicone bowl gasket

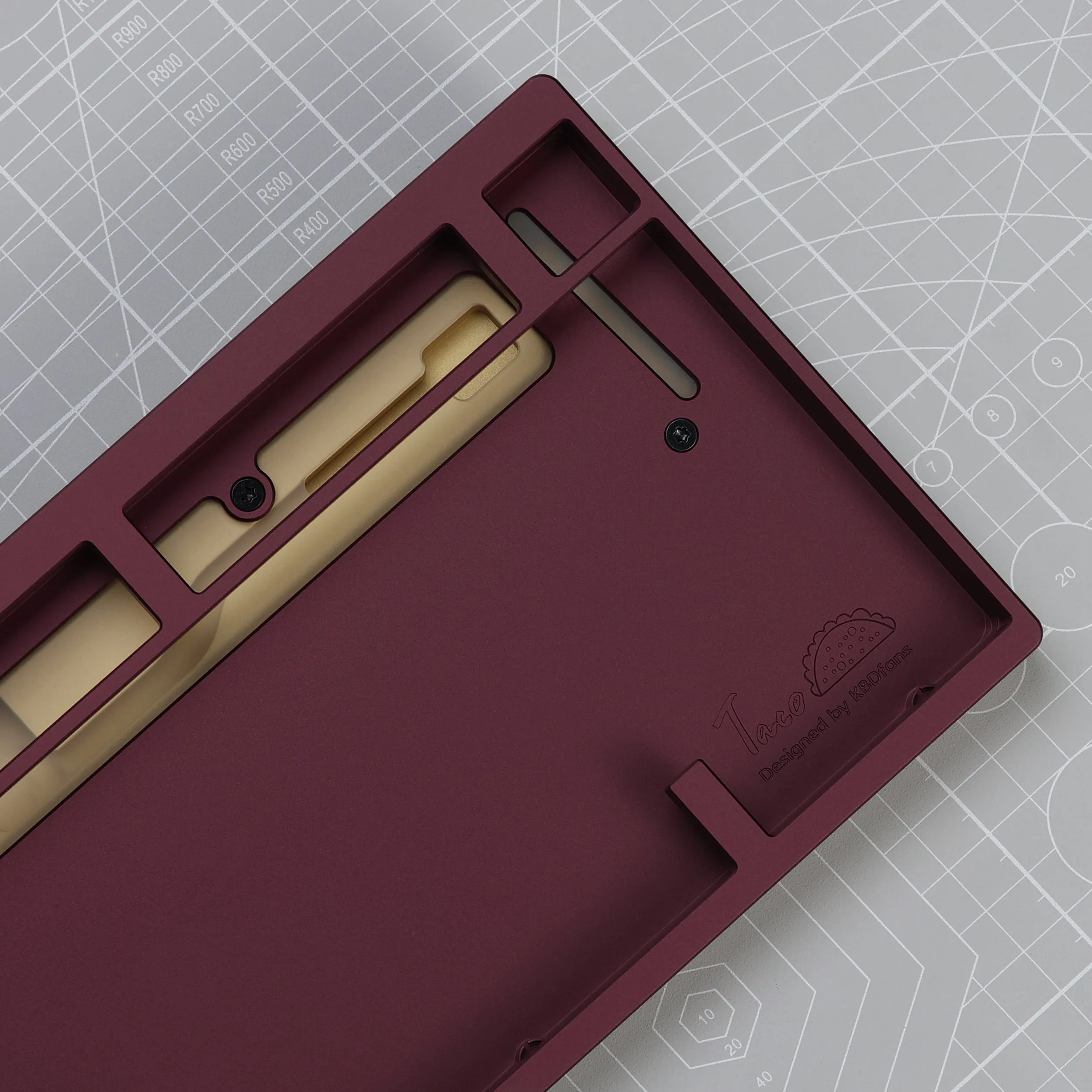

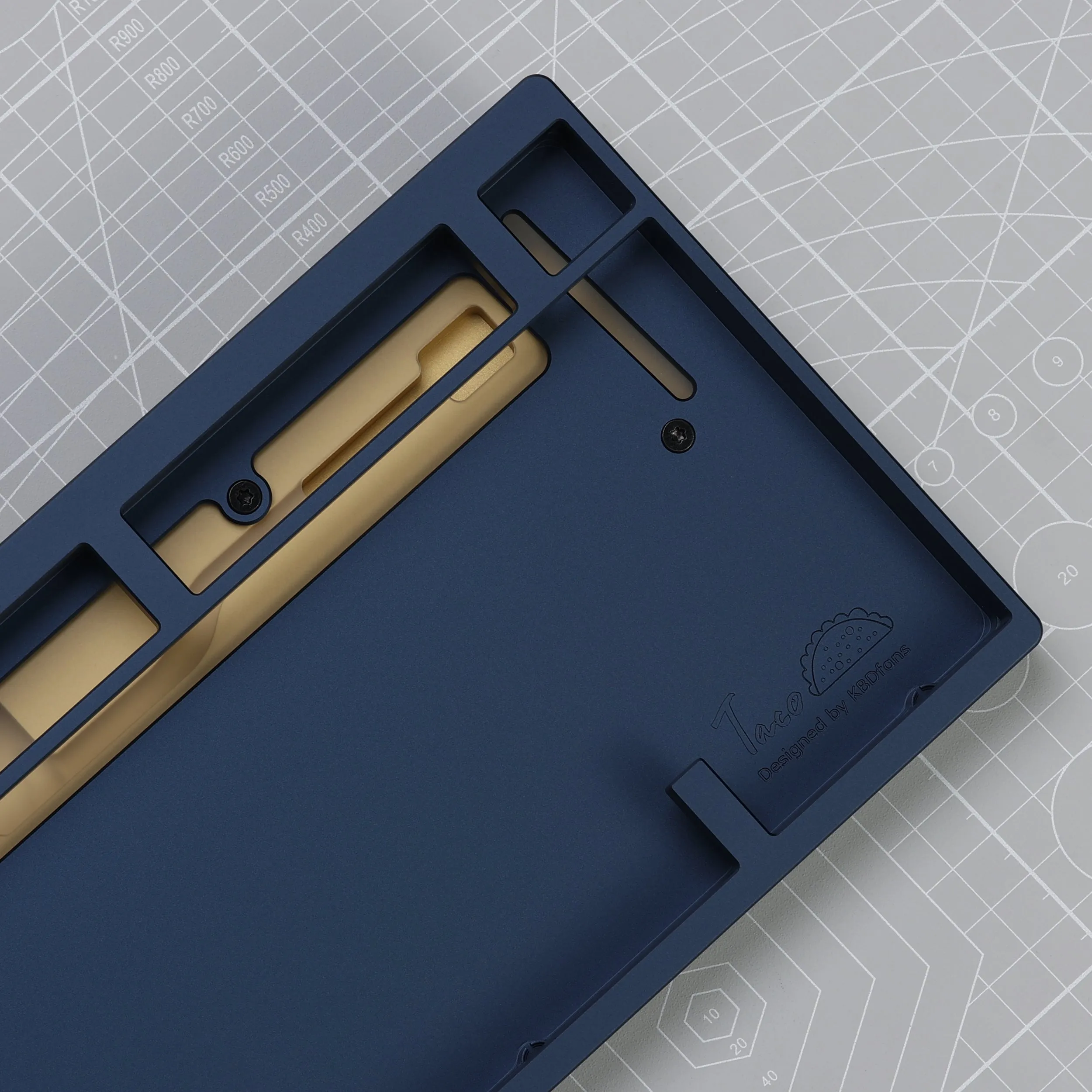

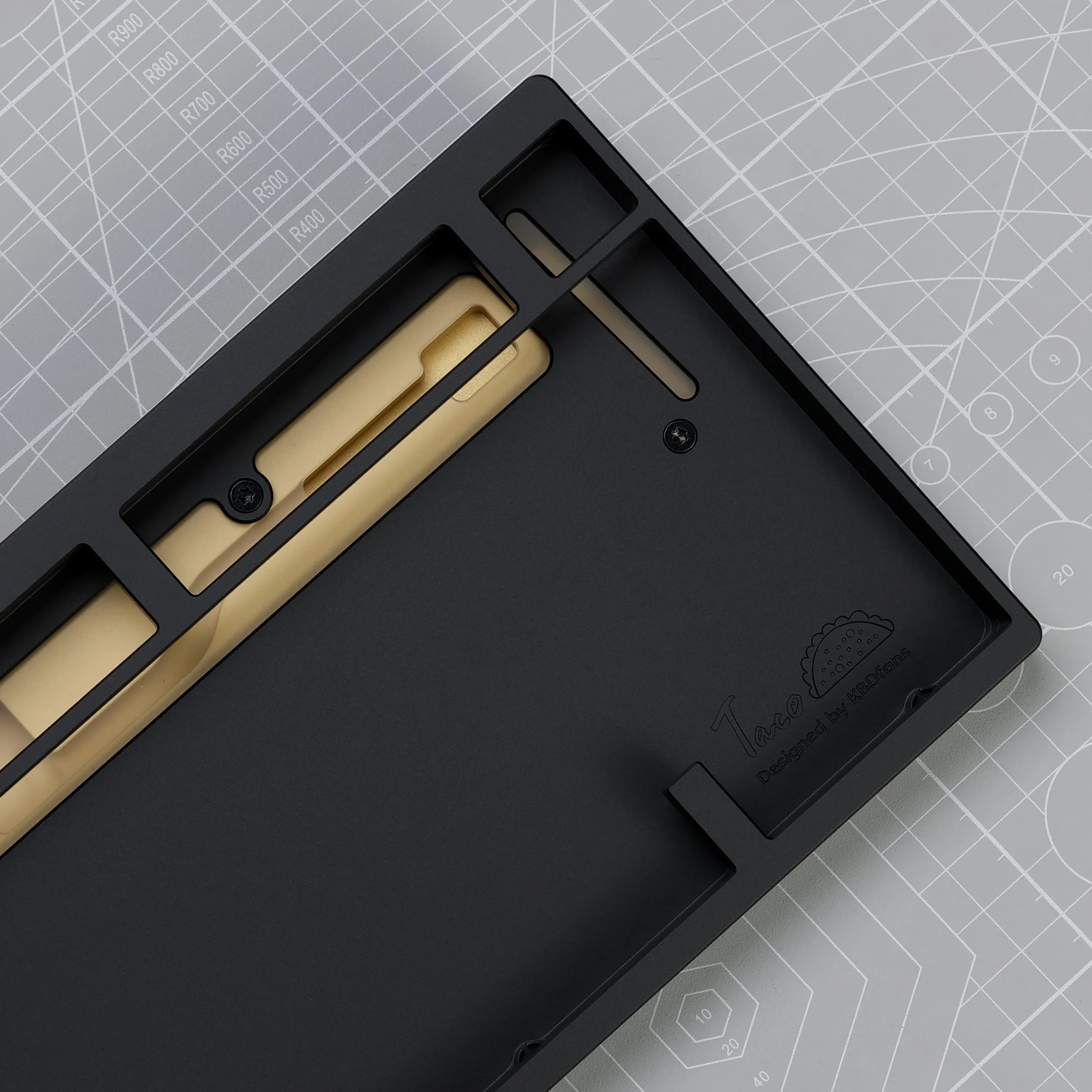

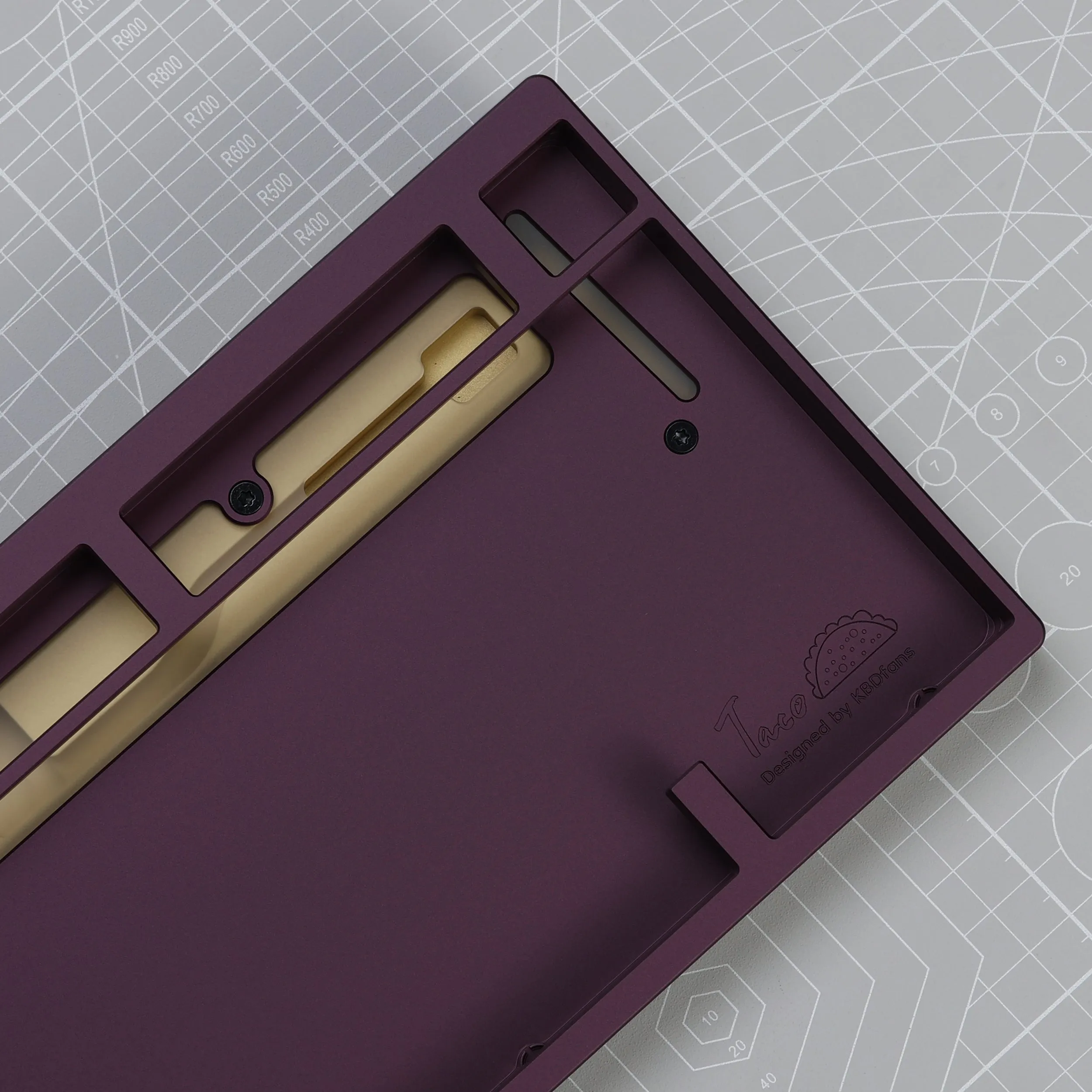

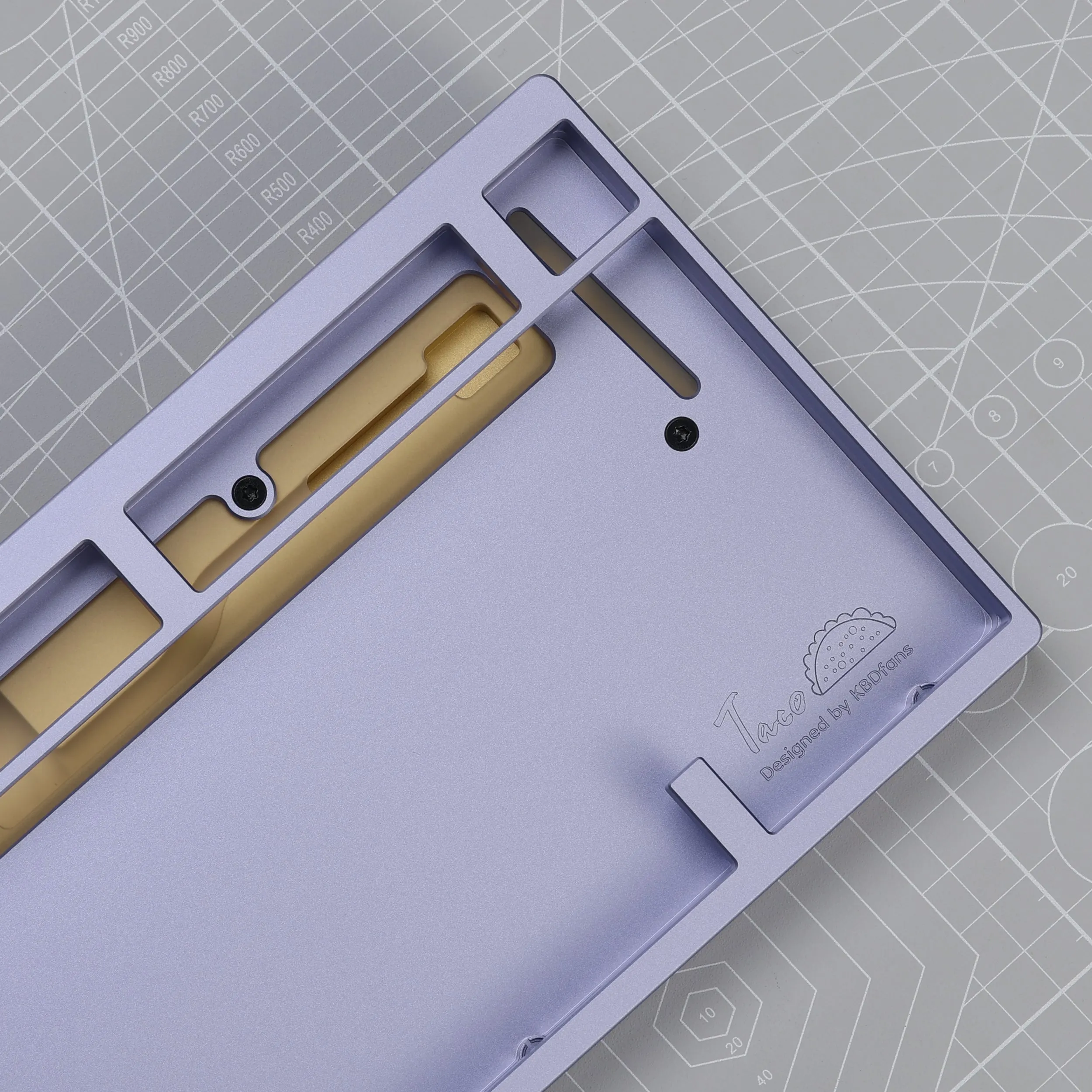

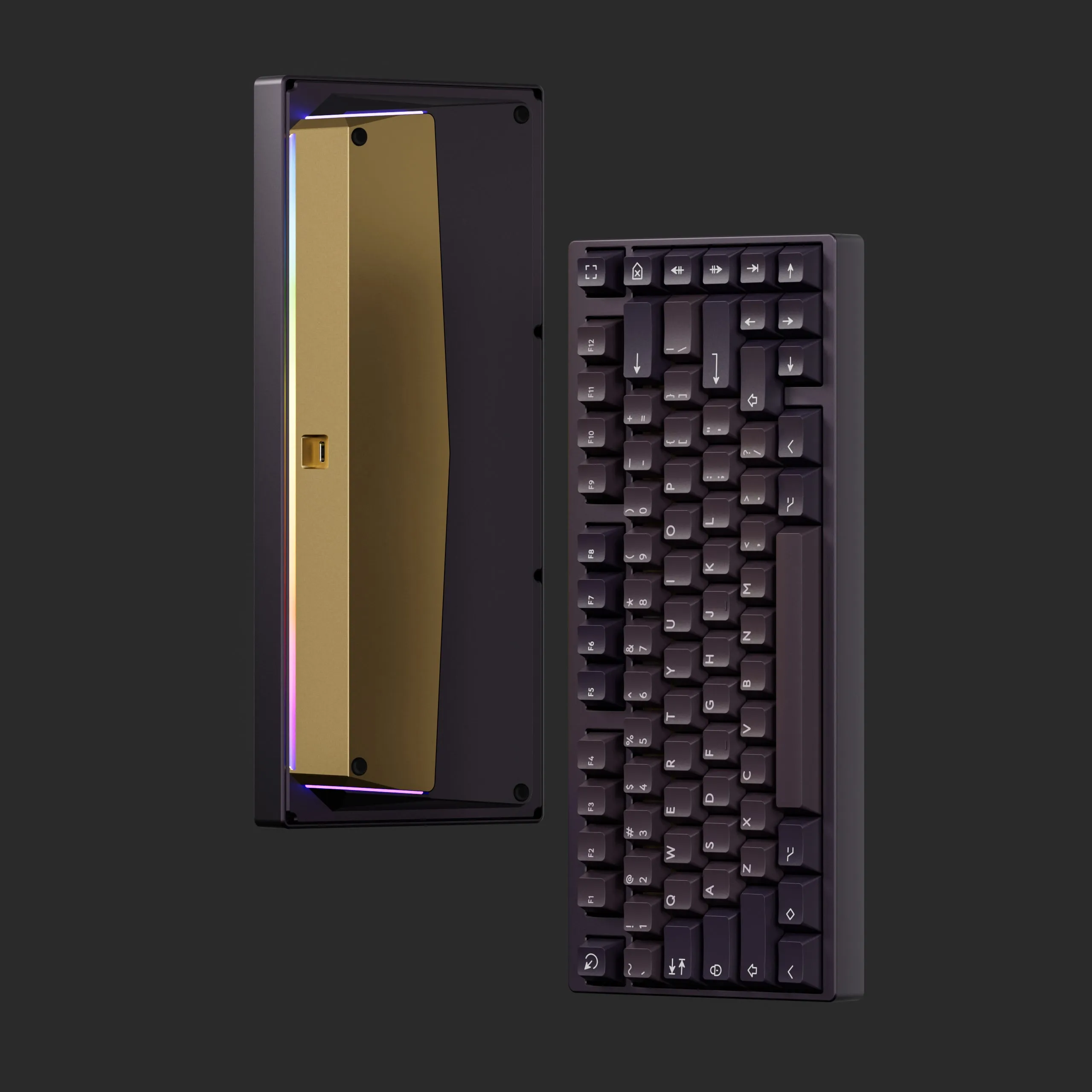

  • Case Material: Aluminum case (Bottom case with acrylic layer, supports RGB light effect),

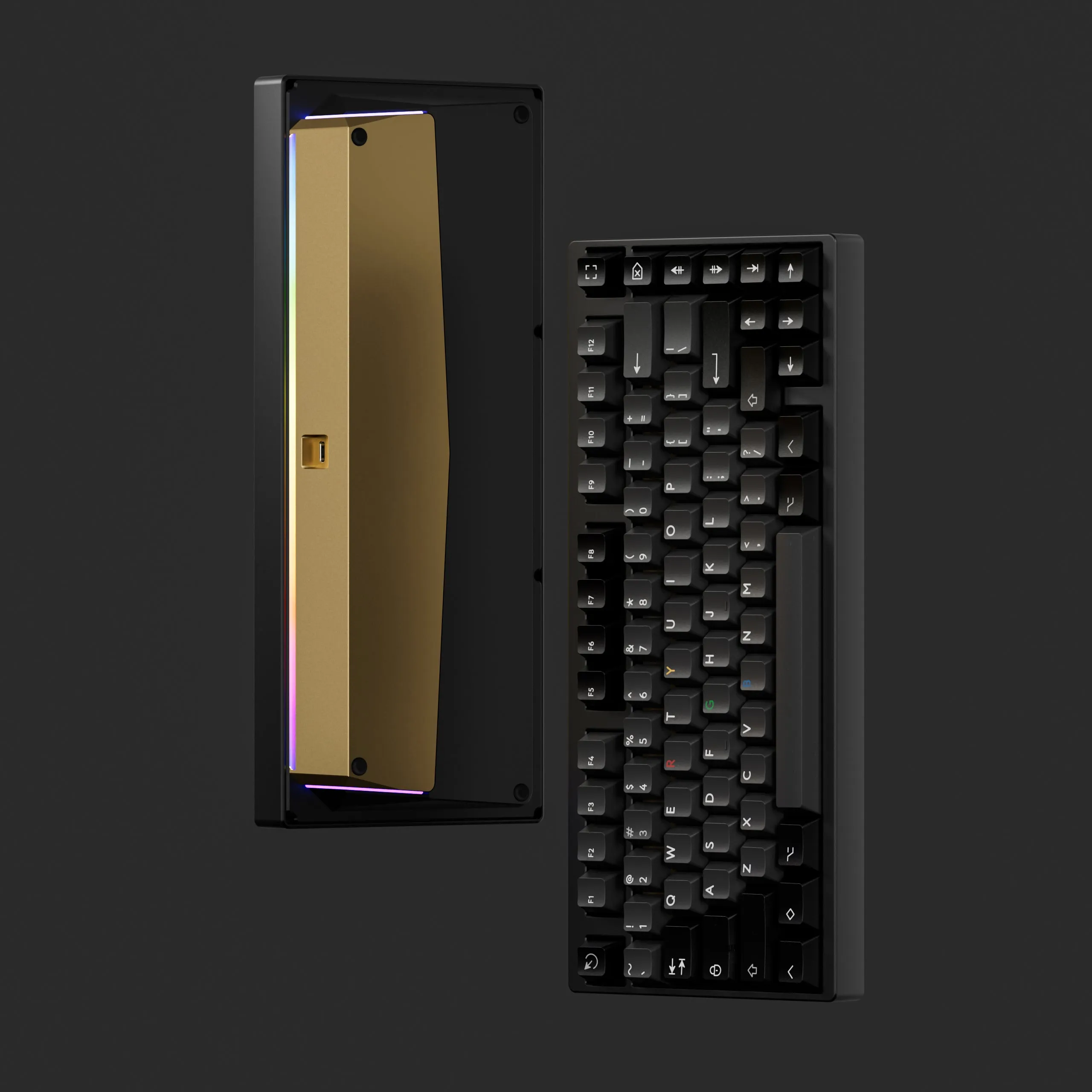

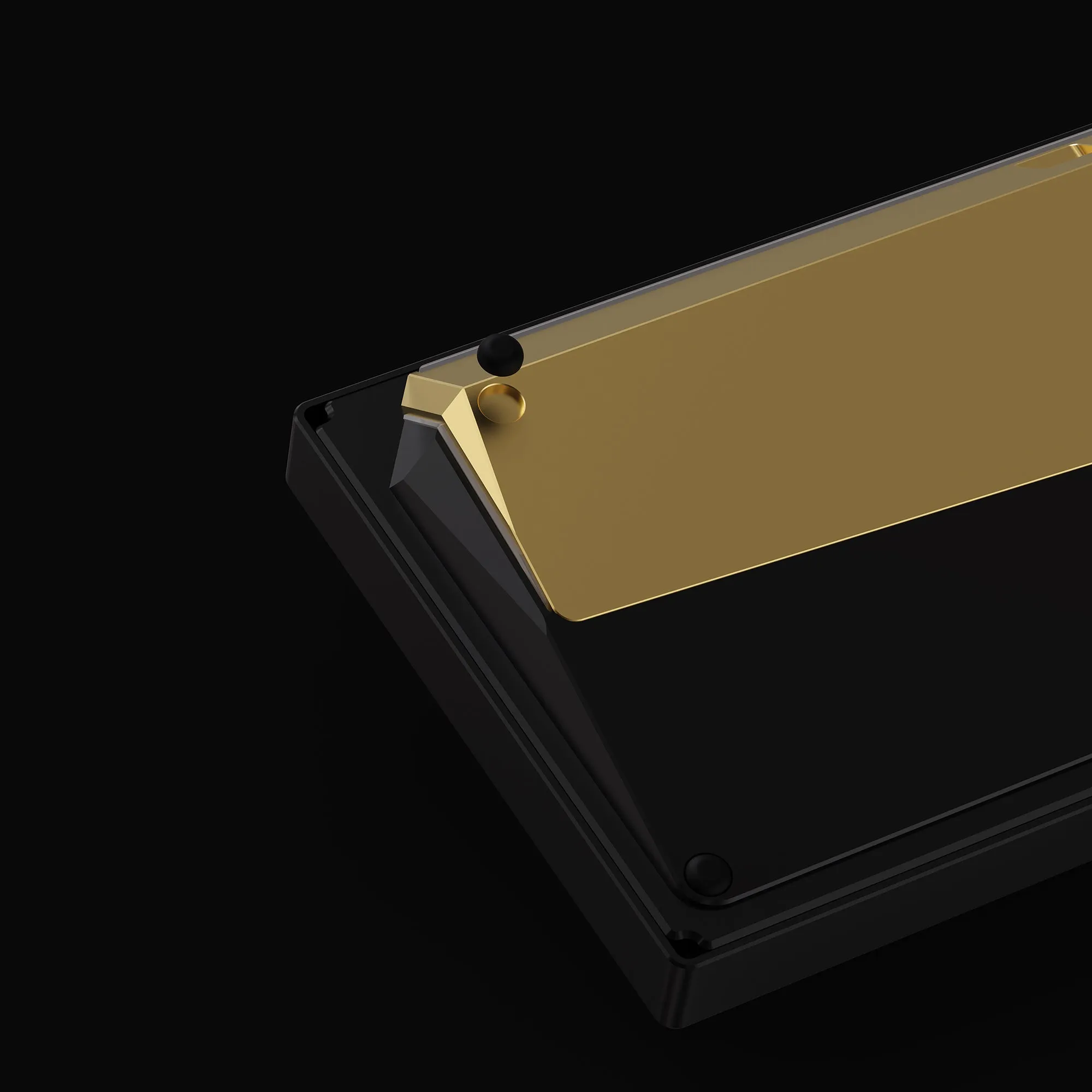

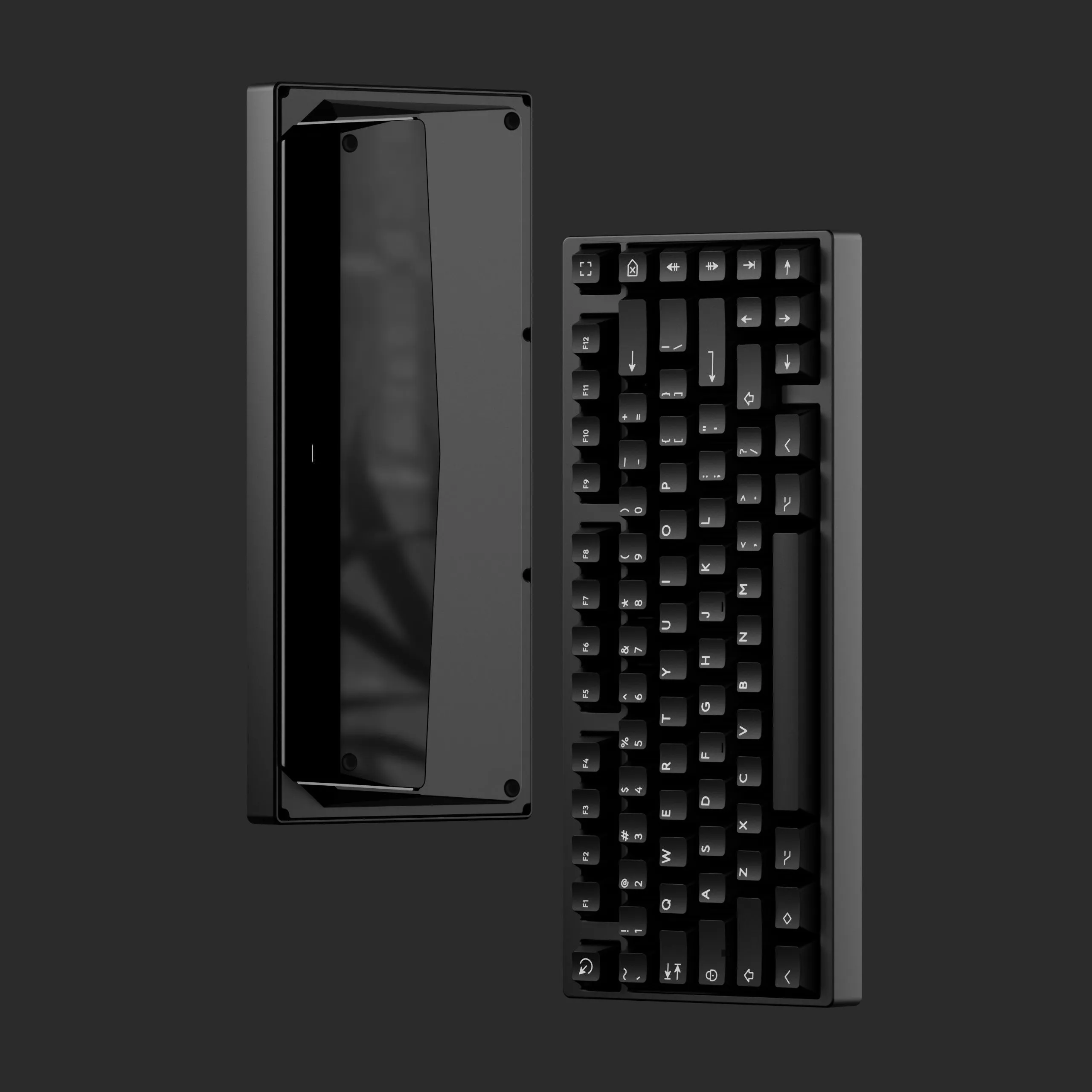

    Pure black kit: Anodized Black case Stainless steel weight with Black PVD coating (no engraving version)
    Other kits: Anodized/E-coating case Sandblasted Brass weight bar (no engraving version)
  • PCB: 1.2 mm Non-flex cut Hot-swap PCB/1.6 mm Non-flex cut Solder PCB, USB-C, supports VIA/QMK, with daughterboard JST cable

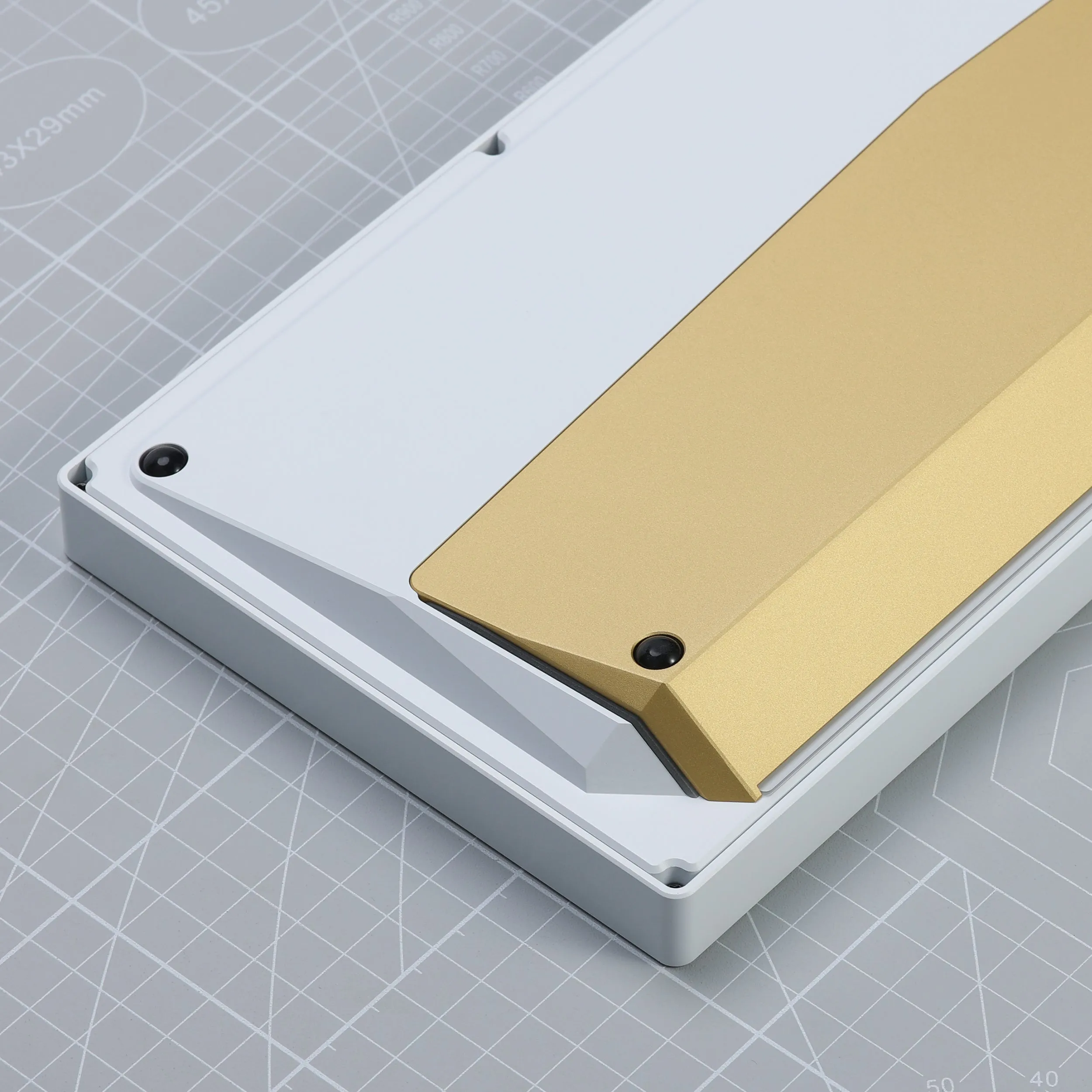

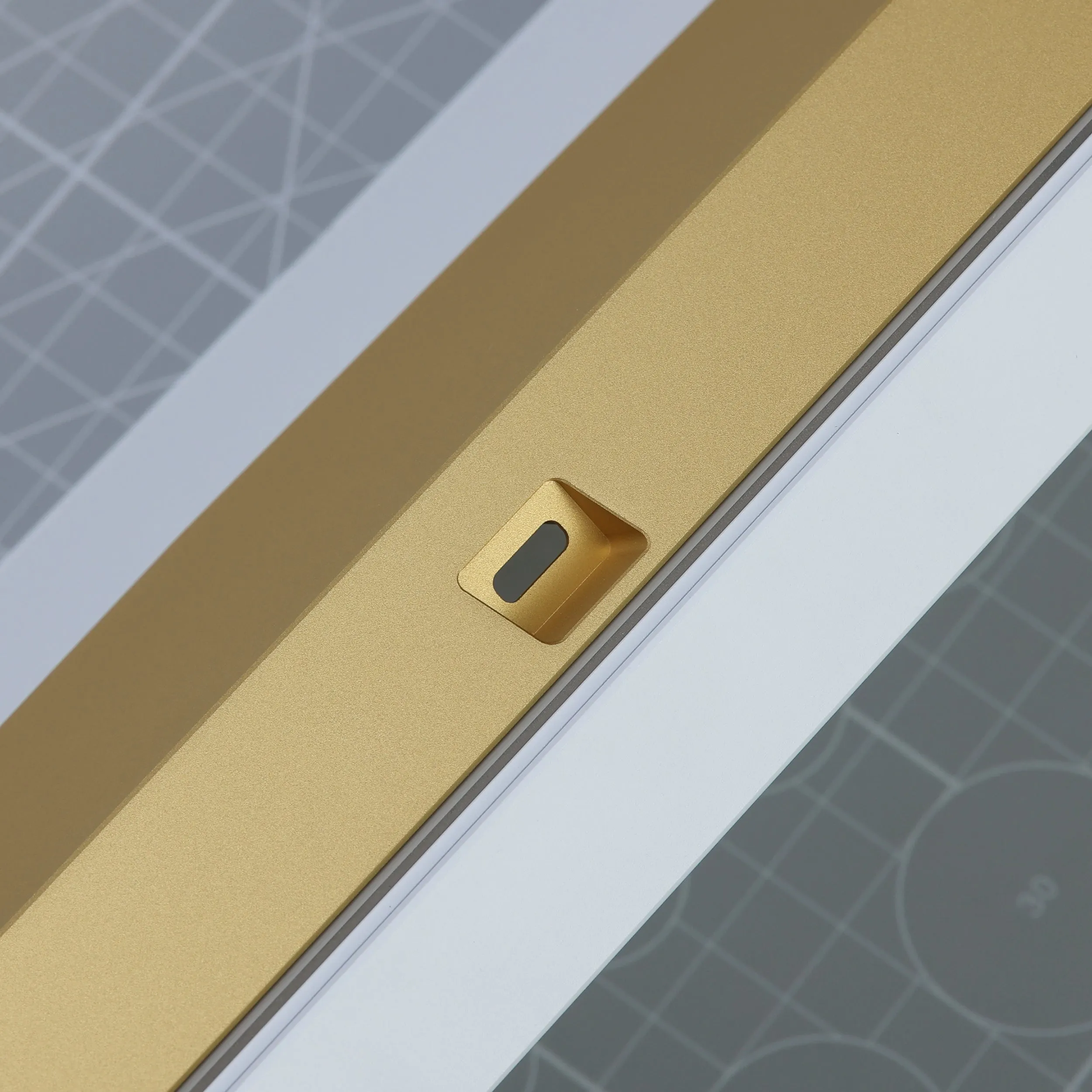

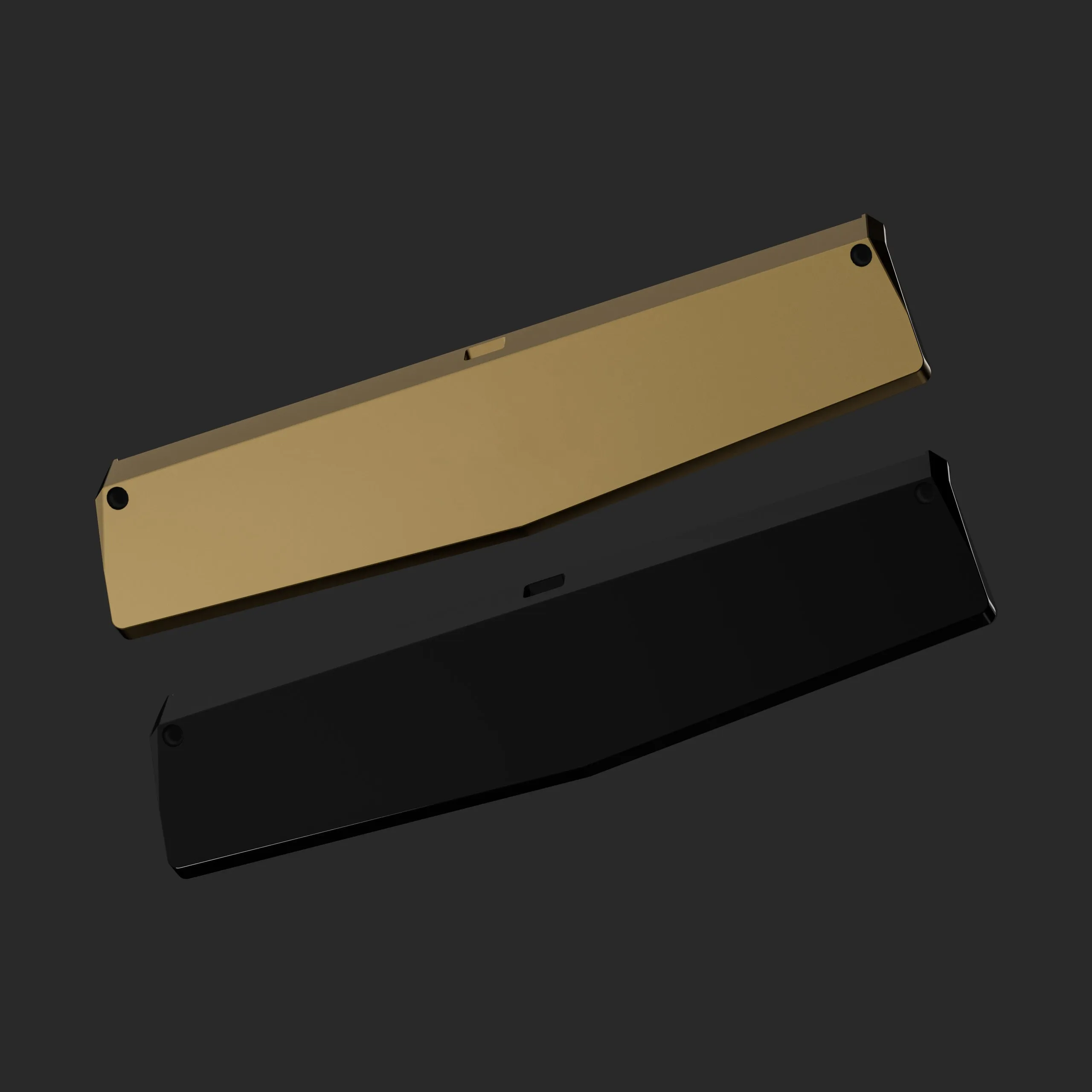

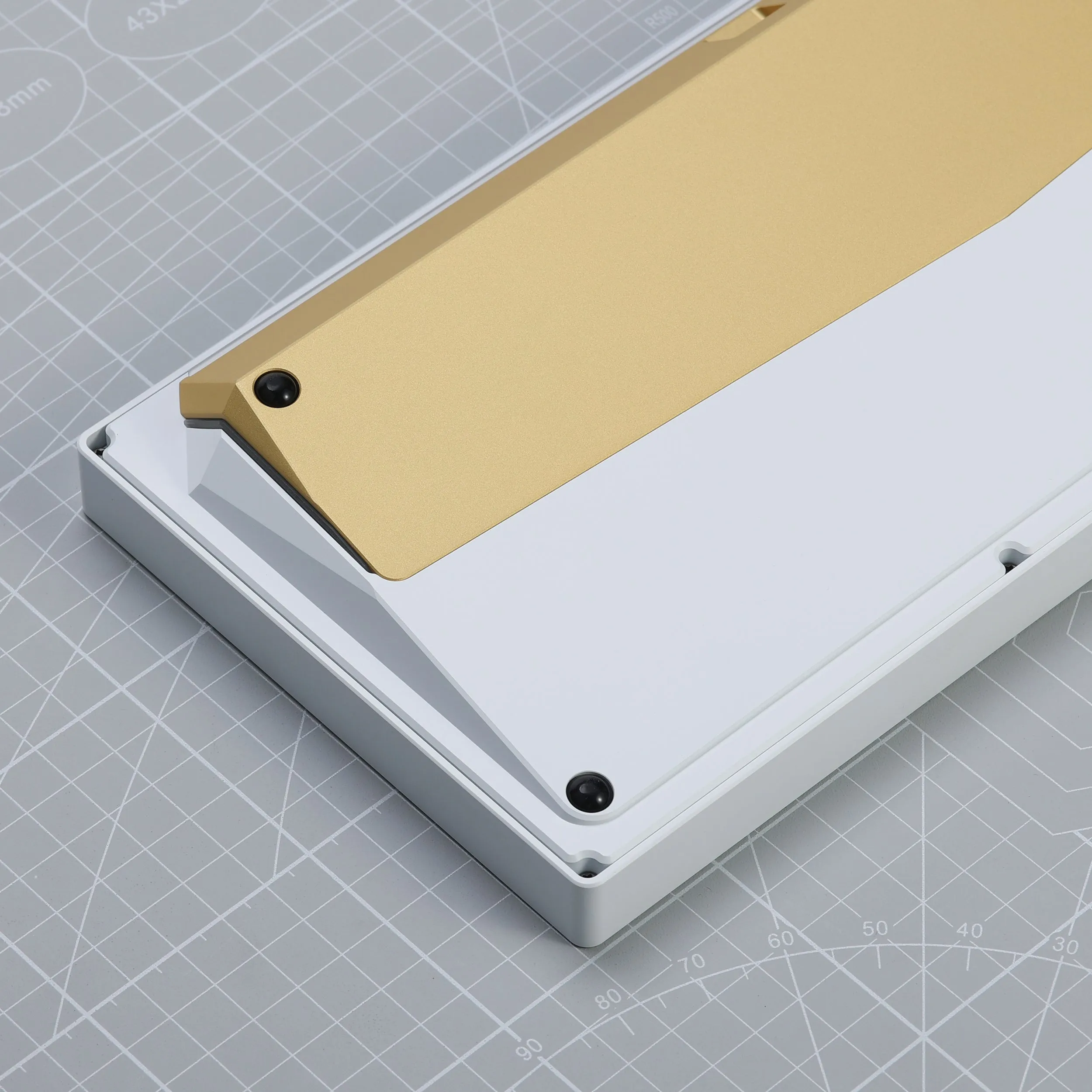

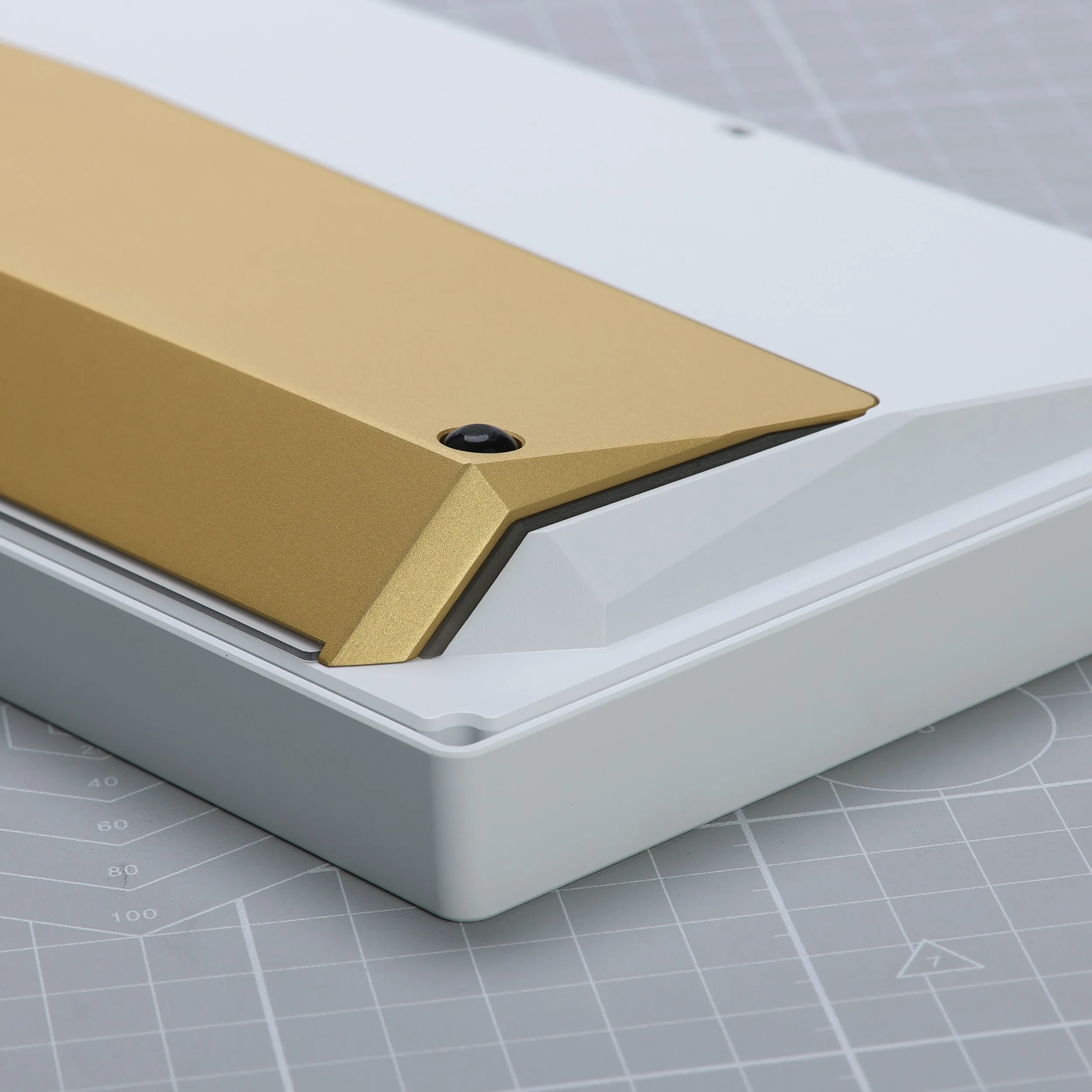

  • Weight bar: Sandblasted Brass/PVD Stainless Steel Weight
  • Plate: Non-flex cut Polycarbonate, Flex cut FR4/Carbon fiber/Aluminum Black
  • Weight: ~2.5 kg (built with stainless steel weight bar)
                ~ 2.6 kg (built with brass weight bar)

  • Case screws: M2.5*6 mm, Torx size T8
  • Designed by KBDfans
  • Keycaps:  Keycaps: PBTfans SUBARASHĪ - Base kit ()

Include

Price of the kit $348 (Anodized colors)/$368(E-white)/$418(Pure black) includes below items:

  • Case x1
  • Weight bar x1
  • PCB x1
  • Foam kit x1 (Bottom poron Plate poron EVA switch pad)
  • Silicone bowl x1 set (50g 60g 70g )
  • Screws and rubber feet x1 set
  • Keycap set x1
  • Stabilizers x1

The following accessories should be purchased separately and added to the cart with the kit together:

  • Plate x1

Reminder:

  • Only Pure black kit: Anodized Black case Stainless steel weight with Black PVD coating (no engraving version)

Firmware

  • Download the firmware and Json file from

Disclaimer

1. The pictures on the page are for reference only. Colors in the final product may vary since renders are done under idealistic artificial lighting.

2. Keyboard case - If you see any resemblance of marks or foreign material under 2 mm (tool marks, stain, dent, sand mark, scratch, etc.), you're not eligible for Return & Refund.

3. Brass weight - If you see any resemblance of marks or foreign material under 2 mm (tool marks, stain, dent, sand mark, scratch, etc.), you're not eligible for Return & Refund.

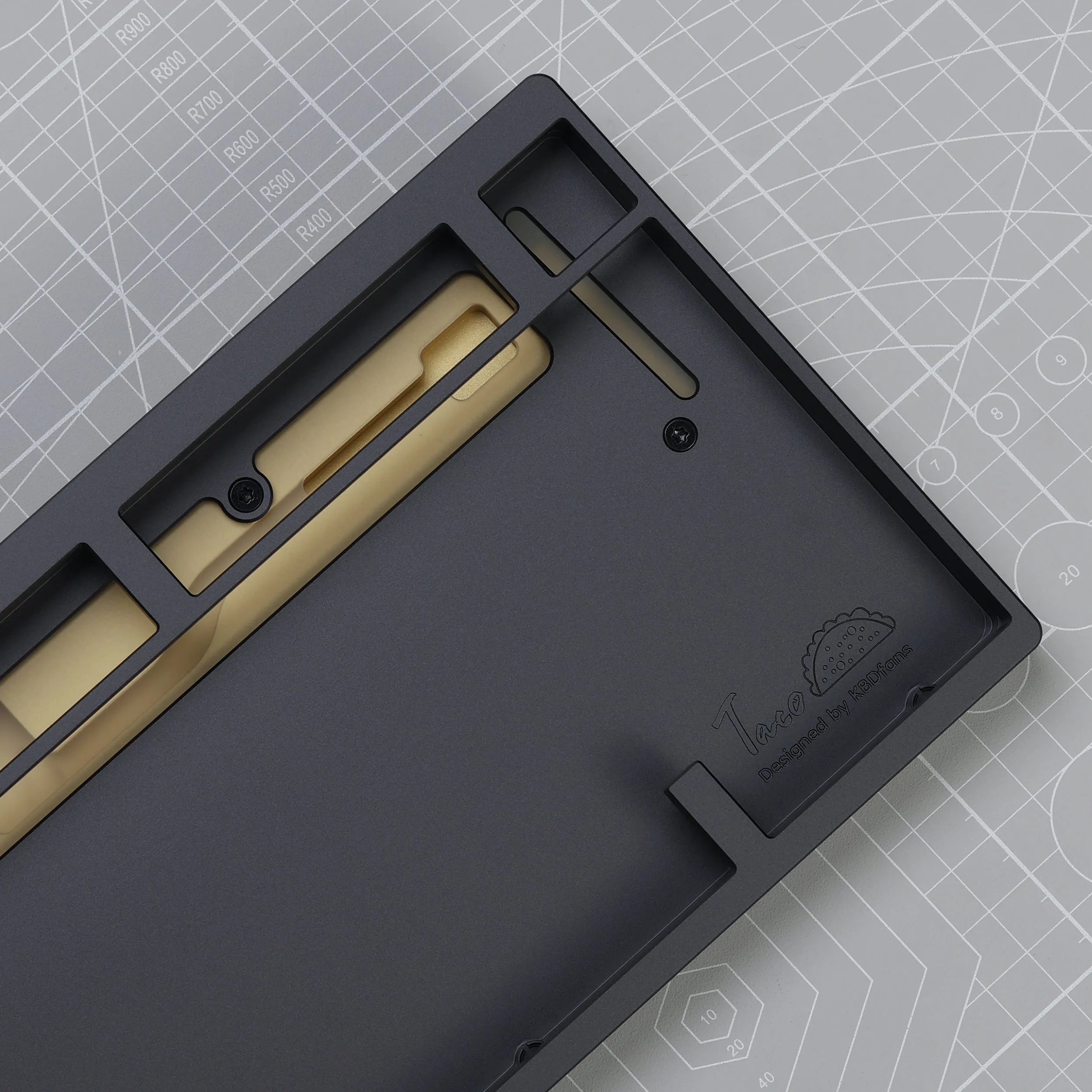

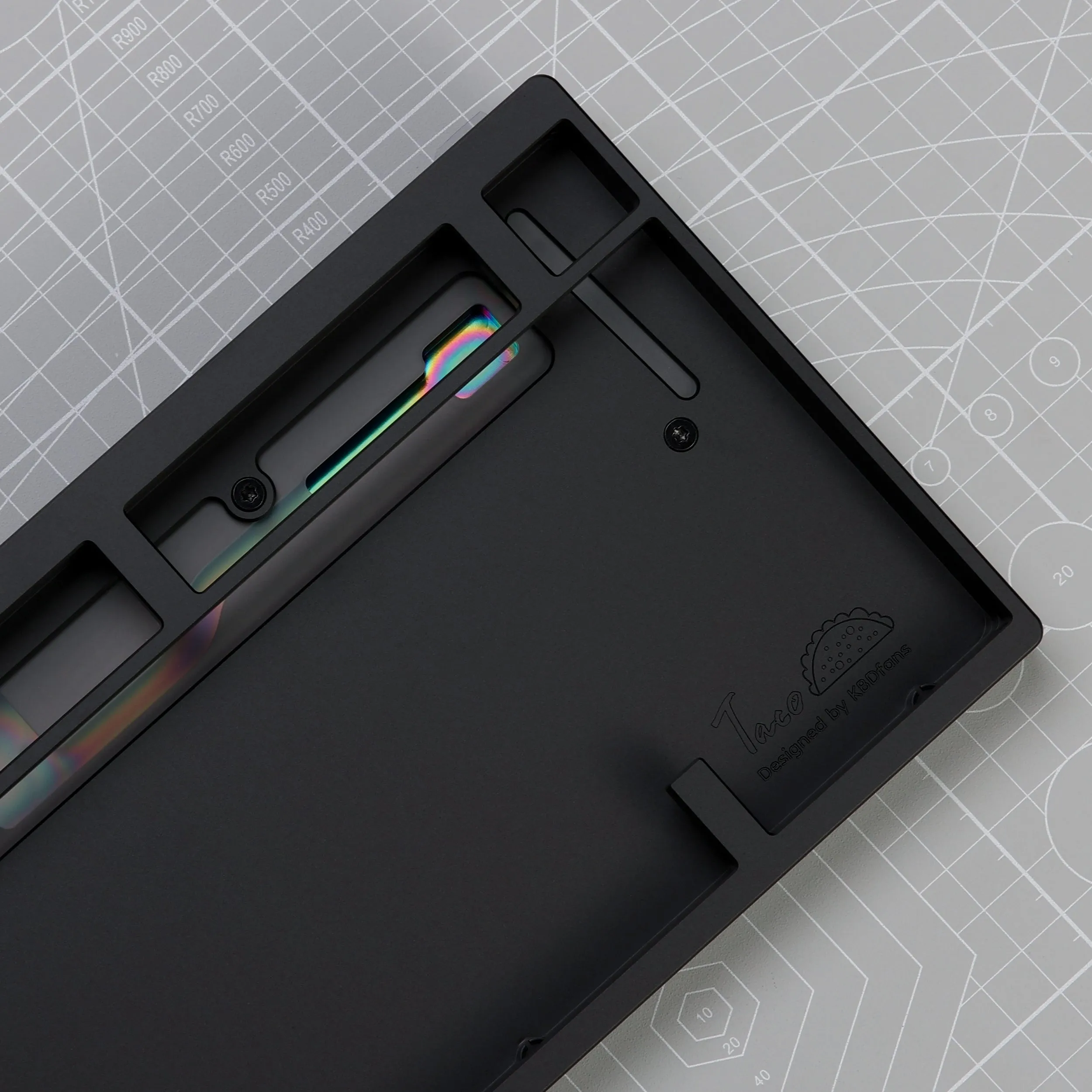

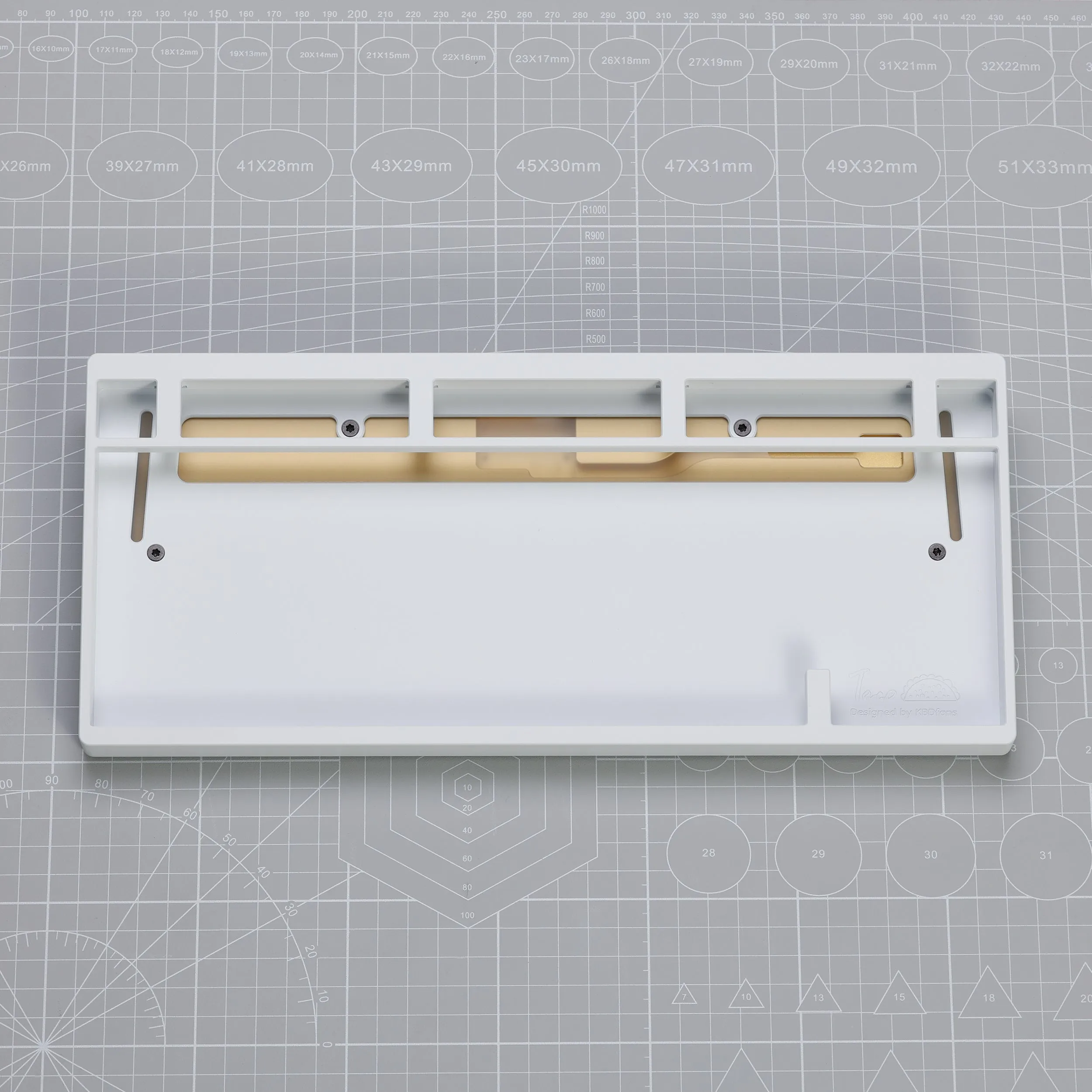

4. Case interior - Based on the production method of anodizing and spraying, the product can lead to some smearing at the surface level, and you'll see some hook marks within the case. Also, the spraying process can not guarantee that the color will look 100% the same on the internal case corners. The color off on the interior case and the interior corners are not eligible for Return & Refund.

5. About the potential coating defects: Because the Faraday cage exists for this type of production method, it's going to be hard to coat the Interior corners perfectly. Insead of kill all the smoothness on the case coating, the interior painting job won't be as perfect as the exterior's.

Attention:
-Make sure to QC your keyboard case and weight before building it. For any issues besides above, please get in touch with our customer support agents to get help.
-For anything built is not eligible for Return & Refund.

Reminders before assembly

SPECS

  • Typing angle: 8°
  • Structure: Top mount/Silicone bowl gasket
  • Case Material: Aluminum case (Bottom case with acrylic layer, supports RGB light effect),
    Pure black kit: Anodized Black case Stainless steel weight with Black PVD coating (no engraving version)
    Other kits: Anodized/E-coating case Sandblasted Brass weight bar (no engraving version)
  • PCB: 1.2 mm Non-flex cut Hot-swap PCB/1.6 mm Non-flex cut Solder PCB, USB-C, supports VIA/QMK, with daughterboard JST cable
  • Weight bar: Sandblasted Brass/PVD Stainless Steel Weight
  • Plate: Non-flex cut Polycarbonate, Flex cut FR4/Carbon fiber/Aluminum Black, not support stepped caps
  • Weight: ~2.5 kg (built with stainless steel weight bar)
                ~ 2.6 kg (built with brass weight bar)

  • Case screws: M2.5*6 mm, Torx size T8
  • Price range:
  • Designed by KBDfans

Taco Pad

Disclaimer

1. The pictures on the page are for reference only. Colors in the final product may vary since renders are done under idealistic artificial lighting.

2. Keyboard case - If you see any resemblance of marks or foreign material under 2 mm (tool marks, stain, dent, sand mark, scratch, etc.), you're not eligible for Return & Refund.

3. Brass weight - If you see any resemblance of marks or foreign material under 2 mm (tool marks, stain, dent, sand mark, scratch, etc.), you're not eligible for Return & Refund.

4. Case interior - Based on the production method of anodizing and spraying, the product can lead to some smearing at the surface level, and you'll see some hook marks within the case. Also, the spraying process can not guarantee that the color will look 100% the same on the internal case corners. The color off on the interior case and the interior corners are not eligible for Return & Refund.

5. About the potential coating defects: Because the Faraday cage exists for this type of production method, it's going to be hard to coat the Interior corners perfectly. Insead of kill all the smoothness on the case coating, the interior painting job won't be as perfect as the exterior's.

Attention:
-Make sure to QC your keyboard case and weight before building it. For any issues besides above, please get in touch with our customer support agents to get help.
-For anything built is not eligible for Return & Refund.

Reminders before assembly

Update

  • Start flfiling orders.(2023-10-17)
  •  Will finish production around Oct 15th.(2023-09-25)
  • Will ship around the end of September (2023-08-29)
  • Estimated shipping date: September, 2023
  • In Production(2023-5-26)
  • R2 prototype approved(2023-4-15)

• The R1 prototype has been produced and still needs to be adjusted. The R2 prototype is in production now. (2023-03-16)

Include

Price of the kit $259 (Anodized colors)/$279(E-white)/$329(Pure black) includes below items:

  • Case x1
  • Weight bar x1
  • PCB x1
  • Foam kit x1 (Bottom poron Plate poron EVA switch pad)
  • Silicone bowl x1 set (50g 60g 70g )
  • Screws and rubber feet x1 set

The following accessories should be purchased separately and added to the cart with the kit together:

  • Plate x1

Reminder:

  • Only Pure black kit: Anodized Black case Stainless steel weight with Black PVD coating (no engraving version)
  • Stabilizers are not included

Firmware

  • Download the firmware and Json file from
